RACK ENCLOSURES

Enclosure, doors, side panels and cable routing —
listed out item by item.

Width 600/700/800 mm, height 42U–52U, depth from 1,000/1,200 mm. Every item is cited to its source.

Request drawings and quote See specifications & selection

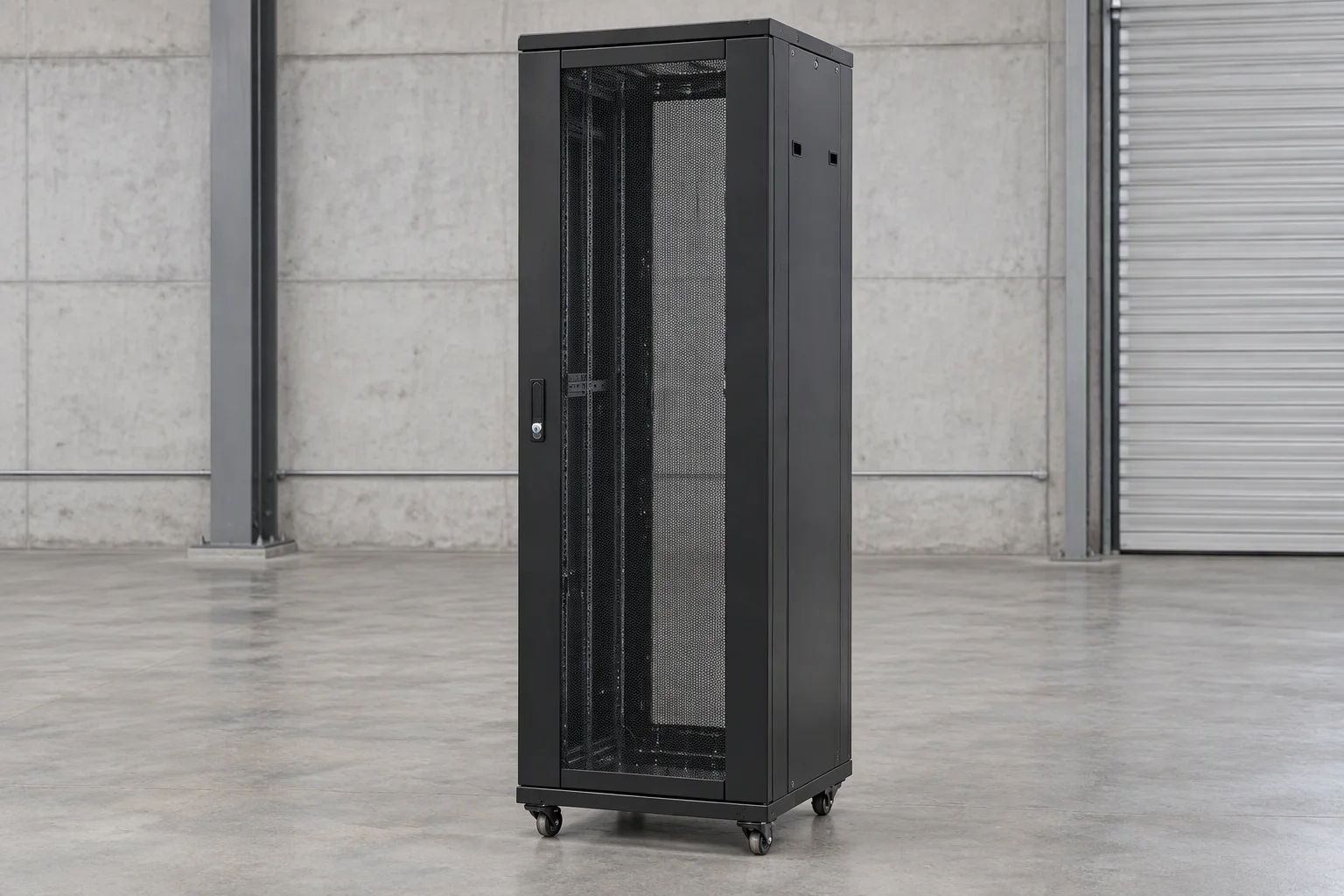

A 42U rack enclosure seen from the front and side, with a perforated front door and mounting rails visible inside
The range of enclosure forms on this site.
FormHeightWidthDepthTypical use
Standard rack42U / 45U / 48U600 mm1,000 / 1,200 mmGeneral servers and network equipment
Wide-frame rack42U / 48U800 mm1,200 mmSide cable routing and 0U accessories
Deep rack42U / 48U600 mm1,200–1,372 mmLong-depth AI servers
Heavy-duty rack42U / 48U600 / 800 mm1,200 mmHeavy-duty AI racks, static load up to 2,268 kg
Open rackOpenU 48 mm pitch706 mm805 / 1,219 mmOCP Open Rack V3
01

Mesh front door

Open area 79%, front-to-rear airflow

02

Glass / mesh rear door

Chosen by the air-intake arrangement; the rear door can be swapped for a heat-exchanger position

03

Side panels

Closed side panels for a single rack, shared side panels when racks are in a row

  • Top cable routingfour 3.5 in cable pass-throughs; plus 4×7 in knockouts (per side)
  • Railstwo pairs of adjustable-depth square-hole rails; the square holes are EIA specification
  • Groundingthe grounding stud is continuous with the frame, side panels and doors
  • Locksfront and rear doors can be locked; supports the physical security requirements of PCI DSS
